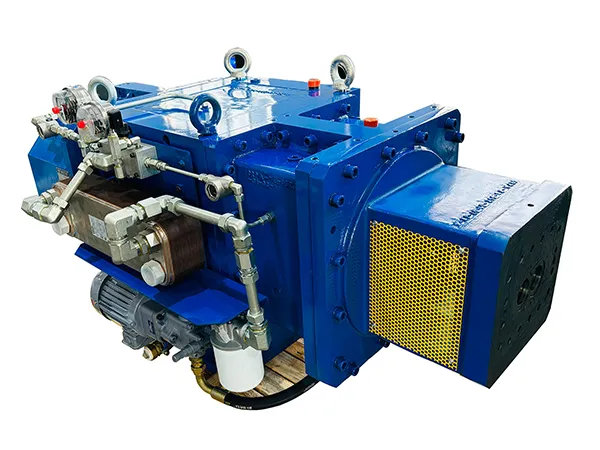

Gearbox for Twin-Screw Extruder

Gearbox for Twin-Screw Extruder

Industrial gear units for co-rotating and counter-rotating twin-screw extruders

Structure Overview

Housing
Made with high-strength ductile iron (FCD450) or steel for excellent rigidity and vibration resistance. This ensures structural stability and long service life even under high load and continuous operation.
Gears
Feature a helical design and are made from 18CrNiMo7-6 or equivalent materials. Each gear is precisely machined to DIN 6 quality standards or higher, ensuring smooth operation, low noise, and high transmission efficiency.
Thrust Bearings
294 .E-type thrust bearings support the axial load generated by the twin screws, maintaining steady alignment and minimizing wear during continuous extrusion.

Request a Quote

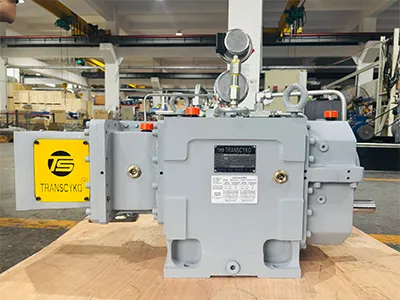

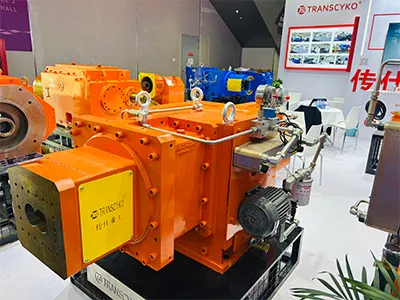

CRPA Series Gearboxes

For Parallel Co-Rotating Twin-Screw Extruder

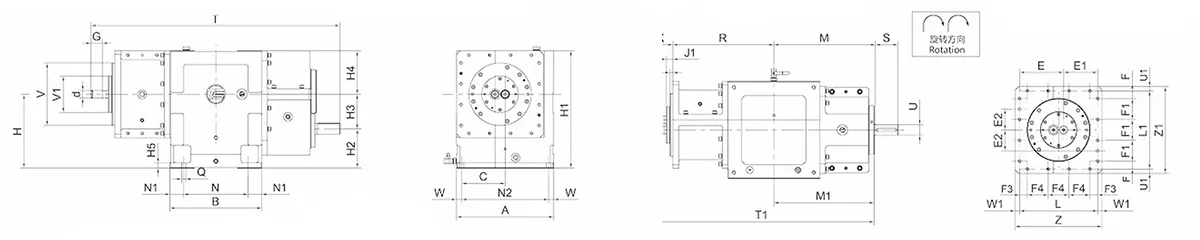

Overall Dimensions (mm)

Model/Size	A	B	C	d (DIN5480)	E	E1	E2	F	F1	F2	F3	F4	G	H H10	H1
CRPA 21.5/26*	220	200	72.5	W14x1x30x12	87.75	66.25	37.5	17	35	40	17	40	21	180	280
CRPA 26.2/32*	280	300	122	W18x1x30x16	120.1	93.9	60	17	60	60	17	60	31.4	225	350
CRPA 35/42*	360	340	160	W25x1x30x24	162.5	127.5	80	25	80	80	25	80	42	285	445
CRPA 42/52*	400	448	175	W32x1.25x30x24	179	137	90	23	90	90	23	90	45	320	500
CRPA 48/58*	460	480	205	W35x1.25x30×26	206	158	105	24.5	105	105	24.5	105	53	360	560
CRPA 58.5/70*	560	530	250	W45x1.5x30x28	254.25	195.75	120	45	120	120	45	120	65	425	675
CRPA 76/92*	715	612	318	W60x2x30x28	323	247	155	52.5	155	155	52.5	155	60	530	845
CRPA 86/104*	815	720	361	W65x2.5x30x24	373	287	185	52.5	185	185	52.5	170/215	75	595	955
CRPA 97/120*	801	796	299	W72x2.5x30x27	416	319	205	52.5	205	205	52.5	210	85	680	1070
CRPA 110/133*	970	892	490	W90x3x30x28	487.5	377.5	255	72.5	230	220	72.5	180/360	100	730	1170
CRPA 120/144*	1040	911	512	W95x3x30x30	505	385	255	87.5	170	340	85	180	120	810	1265

Model/Size	H2 H10	H3	H4	H5	I	J	J1	K	L	L1	M	M1	N	N1	N2	P n°16
CRPA 21.5/26*	100	80	100	16	21.5	15	26	57	154	144	232	228	170	15	145	M8
CRPA 26.2/32*	125	100	125	19	26.2	12	24	73	214	214	312	308	200	50	244	M10
CRPA 35/42*	160	125	160	22	35	15	32	93	290	290	414	409	230	55	320	M12
CRPA 42/52*	180	140	180	23	42	20	39	108	316	316	484	478	318	65	350	M12
CRPA 48/58*	200	160	200	25	48	14	34	115	364	364	507	503	340	70	410	M14
CRPA 58.5/70*	225	200	250	30	58.5	16	37	137	450	450	585	578	370	80	500	M16
CRPA 76/92*	280	250	315	38	76	15	40	171	570	570	717	678	412	100	635	M20
CRPA 86/104*	315	280	360	45	86	15	40	185	660	660	795	780	480	120	725	M24
CRPA 97/120*	360	320	390	55	97	15	40	205	735	720	853	848	516	140	701	M24
CRPA 110/133*	370	360	440	55	110	15	42	255	865	825	976	952	580	156	860	M24
CRPA 120/144*	410	400	455	55	120	25	55	270	890	855	1016.5	1011.5	599	156	930	M24

Model/Size	P1 H7	Q	R	S	T	t1	U	U1	V f7	V1	W	W1	Z	Z1	Weight [kg]	Oil capacity [kg]
CRPA 21.5/26*	8	14	220	56	565	505	24j6	8	110	80	37.5	8	170	160	100	4.5
CRPA 26.2/32*	10	16	299	70	754	680	32j6	13	160	100	18	13	240	240	200	12
CRPA 35/42*	12	18	357	80	944	859	35j6	15	220	150	20	15	320	320	360	35
CRPA 42/52*	12	18	457	90	1139	1043	40k6	17	250	180	25	17	350	350	510	42
CRPA 48/58*	14	20	482	100	1204	1100	45k6	18	290	200	25	18	400	400	700	55
CRPA 58.5/70*	16	24	582	130	1434	1297	60m6	25	355	260	30	25	500	500	1150	110
CRPA 76/92*	20	32	676	180	1744	1525	80m6	30	450	310	40	30	630	630	2350	190
CRPA 86/104*	20	35	757	200	1937	1722	90m6	30	500	340	45	30	720	720	2850	300
CRPA 97/120*	20	38	851	225	2134	1904	100m6	30	565	305	50	30	795	780	3650	360
CRPA 110/133*	20	44	947	225	2403	2154	110m6	27.5	610	305	55	27.5	920	880	5420	540
CRPA 120/144*	20	44	984.5	250	252	2266	125m6	27.5	630	305	55	27.5	945	910	6855	690

Note

Screw diameter values are for reference only
All listed weights and oil capacities are approximate and may vary slightly by model
For larger sizes, custom center distances, or additional technical details, please contact us for assistance

Specifications

Model/Size	Nominal ratio (i)	Input speed (n₁) [min⁻¹]	Output speed (n₂) [min⁻¹]	Rated torque per shaft (Mₜ) [Nm]	Total rated torque (Mₜ) [Nm]
Model/Size	Nominal ratio (i)	Input speed (n₁) [min⁻¹]	Output speed (n₂) [min⁻¹]	Fs=1.5	Fs=1.5
CRPA 21.5/26*	1.5-5	1500-1800	300-1200	123	246
CRPA 26.2/32*	1.5-5	1500-1800	300-1200	265	530
CRPA 35/42*	1.5-5	1500-1800	300-1200	627	1254
CRPA 42/52*	1.5-5	1500-1800	300-1200	1161	2322
CRPA 48/58*	1.5-5	1500-1800	300-1200	1666	3332
CRPA 58.5/70*	1.5-5	1500-1800	300-1200	3136	6272
CRPA 76/92*	1.5-5	1500-1800	300-1200	6762	13524
CRPA 86/104*	1.5-5	1500-1800	300-1200	9973	19946
CRPA 97/120*	1.5-5	1500-1800	300-1200	13230	26460
CRPA 110/133*	1.5-5	1500-1800	300-1200	18675	37350
CRPA 120/144*	1.5-5	1500-1800	300-1200	24475	48950

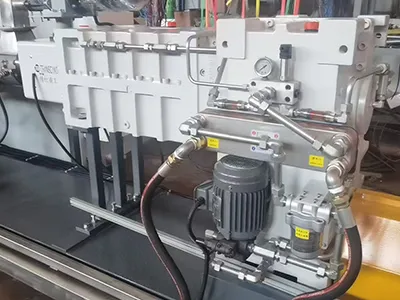

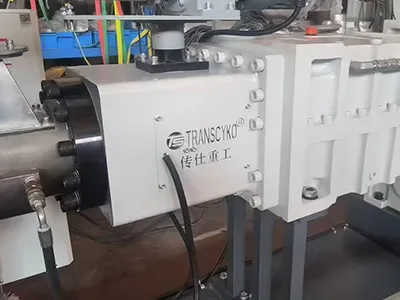

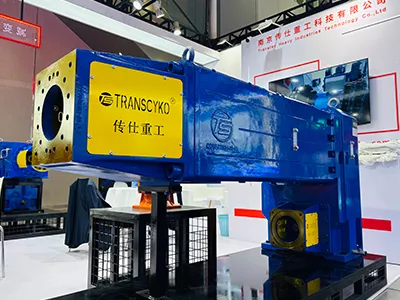

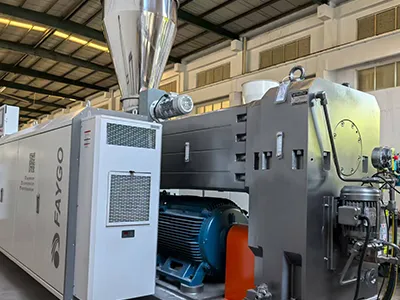

CORP Series Gearboxes

For Parallel Counter-Rotating Twin-Screw Extruder

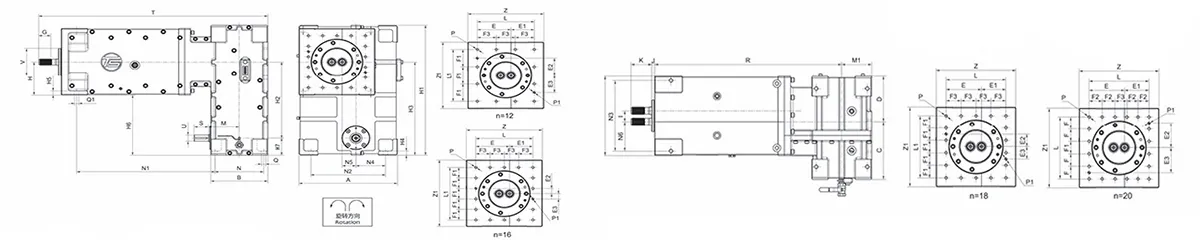

Overall Dimensions (mm)

Model/Size	A	B	B1	C	D	d(DIN5480)	E	E1	E2	E3	F	F1	F2
CORP 55/65*	500	300	387	205	295	W40×1.5×30×25	177.5	122.5	60	120	60	60	60
CORP61/75*	585	375	450	235	350	W45×2×30×21	210.5	149.5	120	120	-	120	-
CORP64/75*	585	375	450	235	350	W45×2×30×21	212	148	120	120	-	120	-
CORP73/90*	610	420	480	245	365	W52×2.5×30×19	211.5	138.5	35	35	-	70	-
CORP75/90*	610	420	480	245	365	W55×3×30×17	212.5	137.5	35	35	-	70	-
CORP75.35/90*	570	420	400	245	325	W55×3×30×17	212675	137325	35	35	-	70	-
CORP77/93*	610	420	480	245	365	W55×3×30×17	213.5	136.5	35	35	-	70	-
CORP 90/110*	630	407	470	250	380	W65×2×30×31	255	165	86	86	-	86	-
CORP 92.5/114*	630	407	470	250	380	W65×2×30×31	256.25	163.75	86	86	-	86	-
CORP 110/130*	730	460	560	280	450	W78×2×30×28	305	195	200	200	100	100	100

Model/Size	F3	G	H (H10)	H1	H2	H3 (H10)	H4	H5	H6	H7 (H10)	I	J	K	L
CORP55/65*	60	65	180	740	437	534	25	25	354	97	55	30	90	300
CORP61/75*	120	75	210	895	527	642	35	35	432	115	61	21	111	360
CORP 64/75*	120	75	210	830	462	577	35	35	367	115	64	21	111	360
CORP 73/90*	87.5	107	225	880	485	608	35	35	383	123	73	25	152	350
CORP 75/90*	87.5	93	225	880	485	608	35	35	383	123	75	25	138	350
CORP75.35/90*	87.5	93	200	972	577	700	35	35	475	123	75.35	25	138	350
CORP77/93*	87.5	93	225	880	485	608	35	35	383	123	77	25	138	350
CORP 90/110*	105	98	235	1015	610	735	30	40	475	125	90	30	158	420
CORP 92.5/114*	105	98	235	1015	610	735	30	40	475	125	92.5	30	158	420
CORP 110/130*	100	125	280	1140	685	825	40	40	510	140	110	30	165	500

Model/Size	L1	M	M1	N	N1	N2	N3	N4	N5	N6	P	n	P1 (H7)	Q
CORP55/65*	300	179	150	260	597	390	347	150	74	146	M16	20	12	18
CORP61/75*	360	192.5	187.5	325	630	430	400	157.5	78	169.5	M16	12	12	22
CORP 64/75*	360	192.5	187.5	325	630	430	400	157.5	78	168	M16	12	12	22
CORP 73/90*	350	220	210	360	845	460	420	170	80	173.5	M20	16	20	26
CORP 75/90*	350	220	210	360	845	460	420	170	80	172.5	M20	16	20	26
CORP75.35/90*	350	220	210	360	845	420	340	170	79.825	132.325	M20	16	20	26
CORP77/93*	350	220	210	360	845	460	420	170	80	171.5	M20	16	20	26
CORP 90/110*	430	213.5	203.5	355	1014	450	420	160	95	165	M20	18	16	30
CORP 92.5/114*	430	213.5	203.5	355	1014	450	420	160	95	163.75	M20	18	16	30
CORP 110/130*	500	242	230	400	1029	530	500	180	108	195	M24	20	16	33

Model/Size	Q1	R	S	T	U	V (f7)	Z	Z1	Weight [kg]	Oil capacity [kg]
CORP 55/65*	18	812	75	1082	40	150	387	360	650	35
CORP61/75*	22	892.5	100	1212	55	195	450	420	1250	70
CORP64/75*	22	892.5	100	1212	55	195	450	420	1250	70
CORP73/90*	26	1125	110	1512	60	220	480	450	1650	90
CORP75/90*	26	1125	110	1498	60	220	480	450	1650	90
CORP75.35/90*	26	1125	155	1498	60	220	400	400	1650	90
CORP 77/93*	26	1125	110	1498	60	220	480	450	1650	90
CORP 90/110*	26	1301.5	112	1693	50	250	470	470	2100	105
CORP 92.5/114*	26	1301.5	112	1693	50	250	470	470	2100	105
CORP 110/130*	33	1379	125	1804	55	340	560	560	3000	110

Notes

The screw diameter values are provided for reference only
Listed weights and oil capacities are approximate and may vary depending on the model and configuration
For larger sizes, customized center distances, or additional technical information, please contact us for more details

Specifications

Model/Size	Nominal ratio (i)	Input speed (n₁) [min⁻¹]	Output speed (n₂) [min⁻¹]	Rated torque per shaft (Mₜ) [Nm]	Total rated torque (Mₜ) [Nm]
				Fs=1.2	Fs=1.2
CORP 55/65*	20-80	1500-2500	20-60	3050	6010
CORP61/75*	20-80	1500-2500	20-60	4790	9580
CORP64/75*
CORP73/90*	20-80	1500-2500	20-60	6610	13220
CORP75/90* CORP75.35/90*	20-80	1500-2500	20-60	7450	14900
CORP 77/93*
CORP90/110*	20-80	1500-2500	20-60	13500	27000
CORP92.5/114*
CORP 110/130*	20-80	1500-2500	20-60	24080	48160

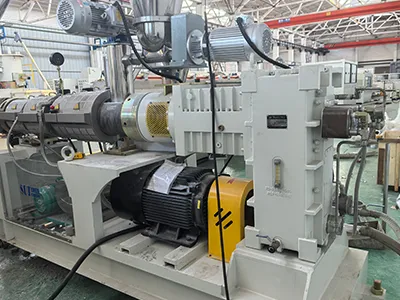

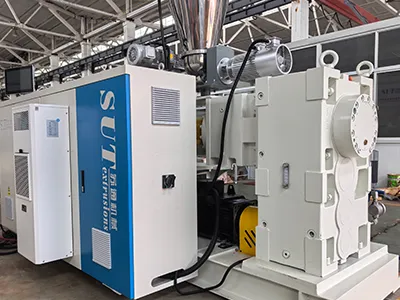

CORC Series Gearboxes

For Conical Counter-Rotating Twin-Screw Extruder

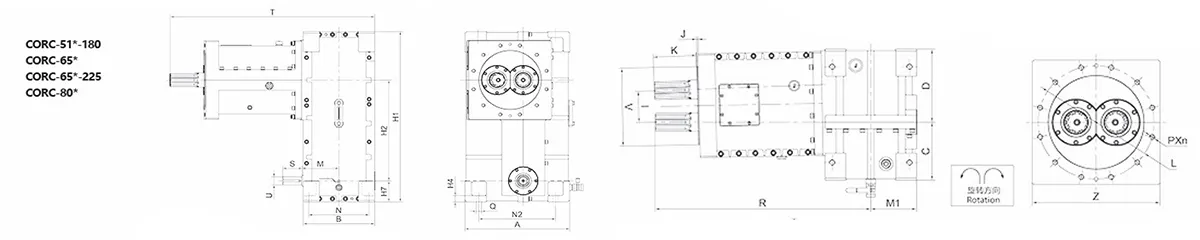

Overall Dimensions (mm)

Model/Size	A	B	B1	C	D	d	H (H10)	H1	H2	H3	H4	H5
CORC-51*-180	420	296	320	180	240	DIN5463-8×46×54	160	722	432	522	25	25
CORC-65*	485	330	435	215	270	DIN5463-8×56×65	192.5	835	494	597	30	25
CORC-65*-225	525	360	550	225	300	DIN5480-W65×3×30×20	225	907	545	657	35	25
CORC-80*-250	565	407	580	250	315	DIN5463-8×62×72	250	1015	610	735	40	20
CORC-80*	625	495	550	295	330	DIN5463-8×62×72	240	1000	570	710	35	35

Model/Size	H6	H7 (H10)	I	J	K	L	M	M1	N	N1	N2	N3	P	n
CORC-51*-180	362	9	93.48	6	164.52	275	158	163	250	40	300	290	M16	10
CORC-65*	404.5	103	115.5	5	155.97	350	170	165	280	100	355	385	M16	12
CORC-65*-225	432	112	115.5	-	199.96	-	192	180	315	135	365	490	-	-
CORC-80*-250	485	125	137.54	6	180	420	213.5	283.5	355	160	385	520	M20	18
CORC-80*	470	140	137.4	6	193.97	420	257.5	247.5	425	140	455	480	M20	18

Model/Size	Q	Q1	R	S	T	U	V(f7)	Z	Z1		Weight (kg)	Oil capacity (kg)
CORC-51*-180	22	22	666.69	80	829.69	35	240	320	320	650		34
CORC-65*	24	22	781	90	946	40/48	290	385	385	720		38
CORC-65*-225	26	27	873.22	100	1053.22	45	-	546	400	900		50
CORC-80*-250	30	27	890.5	112	1174	50	350	460	460	1350		85
CORC-80*	26	26	1116.5	140	1364	60	350	480	480	1750		100

Notes

Screw diameter values are for general reference only
Actual weight and oil capacity may vary depending on specifications and configuration
For inquiries about larger models, alternative center distances, or detailed technical support, feel free to contact our team

CRC Series Gearboxes

For Conical Co-Rotating Twin-Screw Extruder
