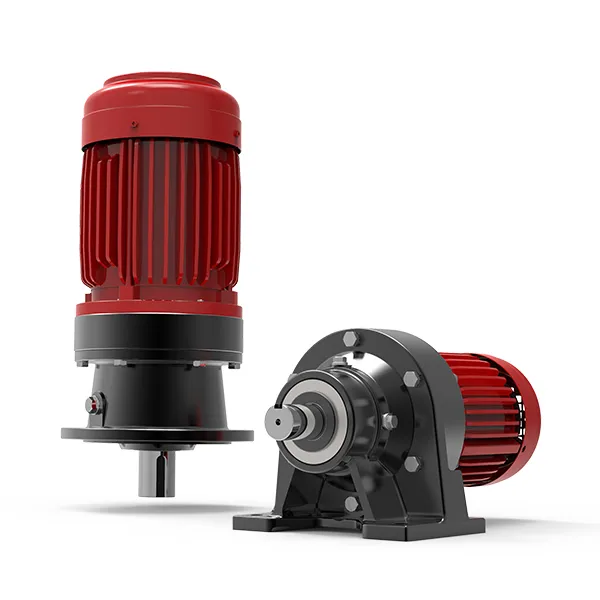

Cycloidal Speed Reducer

800 Series

Cycloidal Speed Reducer

Standard cycloidal drives for industrial and automation systems

  • High Efficiency
    Cycloidal reducers for industrial y automation systems use a rolling contact design that greatly reduces sliding friction and vibration during operation. Since multiple teeth share the load at the same time, torque transmission is smoother and energy loss is minimized. Efficiency can reach over 96% for single-stage setups and around 92% for two-stage configurations.
  • High Overload Resistance
    Thanks to the engagement between the cycloidal disc and the needle pins, many teeth work together simultaneously, up to 67%, which improves load distribution and prevents tooth damage. This structure gives the reducer an overload capacity of up to five times its rated torque, offering reliable protection under demanding conditions.
  • Reliable Quality and Warranty
    Each unit is built under strict quality control, from material processing to precision assembly. The use of rolling contact transmission further enhances durability and service life, ensuring consistent performance and dependable operation over time.
Request a Quote
Product Manual

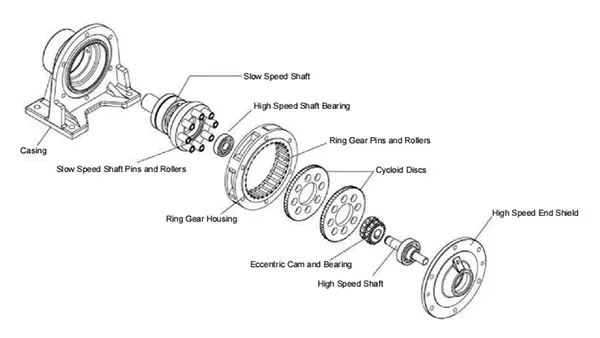

Main Components of Cycloidal Speed Reducers
Cycloidal Speed Reducers

Cycloidal speed reducers consist of three main parts:

  • Input (high-speed) shaft assembly: Includes the shaft, bearings, and oil seals
  • Cycloidal gear mechanism: Composed of the cycloidal disc, eccentric cam, and needle pins
  • Output (low-speed) shaft assembly: Contains the output shaft, supporting bearings, and oil seals
Speed Ratio Table
Speed ratio Frequency 50Hz 60Hz
6 Input speed 1500 R.P.M 1800 R.P.M
Output speed 250 R.P.M 300 R.P.M
8 Input speed 1500 R.P.M 1800 R.P.M
Output speed 188 R.P.M 225 R.P.M
11 Input speed 1500 R.P.M 1800 R.P.M
Output speed 136 R.P.M 164 R.P.M
13 Input speed 1500 R.P.M 1800 R.P.M
Output speed 115 R.P.M 138 R.P.M
15 Input speed 1500 R P M 1800 R P M
Output speed 100 R.P.M 120 R.P.M
17 Input speed 1500 R.P.M 1800 R.P.M
Output speed 88.2 R.P.M 106 R.P.M
21 Input speed 1500 R.P.M 1800 R.P.M
Output speed 71.4 R.P.M 85.7 R.P.M
25 Input speed 1500 R.P.M 1800 R.P.M
Output speed 60 R.P.M 72 R.P.M
29 Input speed 1500 R.P.M 1800 R.P.M
Output speed 51.7 R.P.M 62.1 R.P.M
35 Input speed 1500 R.P.M 1800 R.P.M
Output speed 42.9 R.P.M 51.4 R.P.M
43 Input speed 1500 R.P.M 1800 R.P.M
Output speed 34.9 R.P.M 41.9 R.P.M
51 Input speed 1500 R.P.M 1800 R.P.M
Output speed 29.4 R.P.M 35.3 R.P.M
59 Input speed 1500 R.P.M 1800 R.P.M
Output speed 25.4 R.P.M 30.5 R.P.M
71 Input speed 1500 R.P.M 1800 R.P.M
Output speed 21.1 R.P.M 25.4 R.P.M
87 Input speed 1500 R.P.M 1800 R.P.M
Output speed 17.2 R.P.M 20.7 R.P.M
119 Input speed 1500 R.P.M 1800 R.P.M
Output speed 12.6 R.P.M 15.1 R.P.M
143
(13×11) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 10.5 R.P.M 12.6 R.P.M
165 (15×11) Input speed 1500 R.P.M 1800 R.P.M
Output speed 9.1 R.P.M 10.9 R.P.M
195
(15×13) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 7.7 R.P.M 9.2 R.P.M
231
(21×11) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 6.5 R.P.M 7.8 R.P.M
273
(21×13) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 5.5 R.P.M 6.6 R.P.M
319
(29×11) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 4.7 R.P.M 5.6 R.P.M
377
(29×13) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 4.0 R.P.M 4.8 R.P.M
473
(43×11) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 3.2 R.P.M 3.8 R.P.M
559
(43×13) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 2.7 R.P.M 3.2 R.P.M
649
(59×11) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 2.3 R.P.M 2.8 R.P.M
731
(43×17) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 2.1 R.P.M 2.5 R.P.M
841
(29×29) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 1.8 R.P.M 2.1 R.P.M
1003
(59×17) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 1.5 R.P.M 1.8 R.P.M
1247
(43×29) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 1.2 R.P.M 1.4 R.P.M
1849
(43×43) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 0.81 R.P.M 0.97 R.P.M
1479
(87×17) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 1.0 R.P.M 1.2 R.P.M
2065
(43×29) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 0.73 R.P.M 225 R.P.M
2537
(59×43) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 0.59 R.P.M 0.71 R.P.M
3481
(59×59) 		Input speed 1500 R.P.M 1800 R.P.M
Output speed 0.43 R.P.M. 0.52 R.P.M.
3045
(87×35) 		Input speed 1500 R.P.M. 1800 R.P.M.
Output speed 0.49 R.P.M. 0.59 R.P.M.
4437
(87×51) 		Input speed 1500 R.P.M. 1800 R.P.M.
Output speed 0.34 R.P.M. 0.41 R.P.M.
5133
(87×59) 		Input speed 1500 R.P.M. 1800 R.P.M.
Output speed 0.29 R.P.M. 0.35 R.P.M.
7569
(87×87) 		Input speed 1500 R.P.M. 1800 R.P.M.
Output speed 0.20 R.P.M. 0.24 R.P.M.
6177
(87×71) 		Input speed 1500 R.P.M. 1800 R.P.M.
Output speed 0.24 R.P.M. 0.29 R.P.M.
Need Reliable Drive Solutions for Your Application?

Talk to our experts and find the gearbox or speed reducer that fits your system

Why Us

Transcyko specializes in the design and manufacturing of industrial gearboxes and speed reducers. With over 40 years of gearbox manufacturing expertise, we deliver precision drive solutions for plastics, rubber, chemical, metallurgy, automation, and energy industries. Our 40,000m² manufacturing facilities in Nanjing and Taiwan support large-scale production of up to 60,000 high-precision gear reducers annually.

  • Why UsOver 40 years of experience in gearbox manufacturing
  • Why UsClose cooperation with the Industrial Technology Research Institute (ITRI)
  • Why UsAdvanced machining and testing equipment from Germany and Japan
  • Why UsCertified to ISO 9001, ISO 14001, ISO 45001 and ISO 50001 standards
  • Why UsLong-term cooperation with global distributors

Cycloidal gearboxes, also known as cycloidal drives, are precision transmission systems designed to deliver high torque and accurate motion with minimal backlash. They operate through an eccentric mechanism that drives cycloidal discs to engage with needle pins inside the housing. This motion converts the motor’s input rotation into a stable, reduced-speed output, allowing smooth power transmission and consistent performance.

Cycloidal gearboxes offer a compact structure, high reduction ratios, and strong load capacity. They also feature low backlash and excellent impact resistance, which is ideal for equipment that requires precise positioning, smooth motion, and reliable performance under heavy or changing loads.

Selecting the right gearbox involves considering the required torque, reduction ratio, available installation space, and working environment. It’s also important to evaluate the type of load, duty cycle, and operational conditions to ensure efficient performance and long-term reliability.

The input shaft transfers rotational energy from the motor into the gearbox and initiates the eccentric movement inside. Its precision, balance, and alignment have a direct impact on the gearbox’s efficiency, stability, and overall lifespan.
